ALS3-PS-A

13 types of actuator heads, IP67, high mechanical endurance, two types of contact structures, contact combinations of 1NO+1NC and 2NC, anti-release hinge cover design, CCC/CE/RoHS certified

Important Parameters

Degree Of Protection

IP67
Ambient Temperature

-25℃ ~ +70℃
Head Type

13 types
Compatible

Four types of waterproof connectors: M20/M16/Pg11/Pg13.5
High Mechanical Endurance

15,000,000 times
Operating Frequency

7,200 times per hour

Product Features

High protection level, suitable for a wider range of outdoor environments

Two contact types, quick action and slow action, covering more fields

Hinged flip-type cover design, preventing detachment and improving mounting efficiency

A variety of heads to meet different application scenarios

Compatible with multiple types of waterproof connectors, suitable for a wider range of special environments

High mechanical endurance to increase use time

Metal threaded hole design, capable of withstanding environments with high torque forces, increasing mounting efficiency

Forced break function to protect circuits

The head can rotate 90 degrees to meet diverse usage demands

Material complies with the EU RoHS standards, fulfilling environmental protection requirements

CE, CCC, CQC certification declaration

Technical Parameters

Main Parameters

Rated Insulation Voltage	AC500V
Power Frequency Withstand Voltage	AC1890V·50Hz·1min
Rated Thermal Current	10A
Certificate	CCC/CE
Mechanical Endurance	15,000,000 times (7,000,000 times for universal type)
Electrical Endurance	500,000 times (inductive load)
Ambient Temperature	-25℃~+70℃
Ambient Humidity	<95%RH
Degree of Protection	IP67
Action Frequency	7,200 times/hour (mechanical action frequency)
Anti-impact Class	30gn·18ms
Anti-vibration Class	10~55Hz · 0.75mm single amplitude
Contact Material	Silver alloy
Forced Break Function	Yes

2D/3D Drawings

3D ALS3-P Limit switch

Industry Application

同類產(chǎn)品推薦

All Products

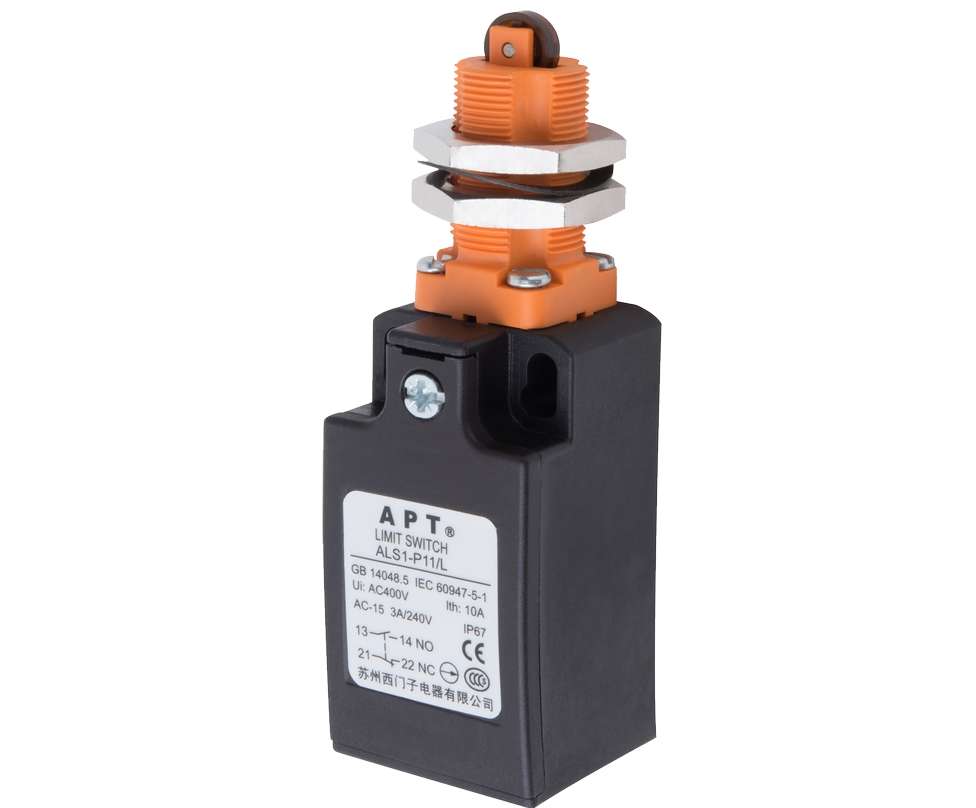

ALS1-P-L
